MB6 series
plug-in bus I/O module

Unlimited connection of enabling bus

MB6 series plug-in I/O module is composed of coupler module, I/O function module, relay power module, common end module and end cover. The I/O function module is also divided into digital quantity, relay, analog quantity, pulse output, encoder, temperature, communication and other functional modules with multiple types and points. Customers can match according to the site requirements, and support mainstream EtherCAT, PROFINET, CC-Link, and other communication protocols, It is widely used in various bus applications.

Product features

The application mode adopts the combination of coupler, digital quantity, analog quantity, relay, temperature, pulse output, pulse input, power module, common terminal module and other modules

Lightweight and convenient& Reliable connection

◆Light and thin insert: Plug-in modular design, thin to 15mm；
◆Convenient installation： Snap-type guide rail structure, easy disassembly and maintenance; Screw-free terminal blocks can reduce wiring time, improve installation efficiency and expand easily; Each coupler can support up to 32 I/O modules；

◆Wiring is firm: The terminal sinking design makes the contact more firm. The unique binding hole design makes the wiring more beautiful and prevents the terminal from loosening；

◆Standard end cover： The standard end cap and end cap are used as the end point of addressing, and the communication will be more stable；

Intelligent high-speed & safeguard

◆Intelligent power supply: Coupler power supply supplies IO module synchronously, without external power supply (except DO module)；
◆high-capacity： Digital quantity DO module supports high current operation, with normal time of 1.5A；

◆High speed response: The transmission speed can reach 100Mbps (full duplex), the communication cycle can be as short as 125us, high-precision distributed clock, precise synchronization (jitter< 1us)；

◆Multiple protection： Power input (coupler, relay power module, etc.) has reverse connection protection, digital output (transistor type), analog output (voltage, current), and short circuit protection function；

Multiple protocols & Rich type

◆Multiple protocols: Easy docking EtherCAT、PROFINET、CC-Link、CC-Link IE Basic、 DeviceNet、CANopen Etcagreement；
◆Rich types： I/O expansion module of digital quantity, relay, analog quantity, pulse output, encoder, temperature, communication and other types and points；

◆Upper computer software: IO_ Studio's special upper computer configuration software can be quickly selected (generate order form) to easily realize parameter configuration (import/export), debugging, test run, firmware upgrade and other operations；

◆Stable supply： Universal chip+Motong special program to ensure stable supply。

Product specification

Analog quantity, digital quantity, pulse type, relay type, encoder, temperature type and other I/O expansion modules of various types and points

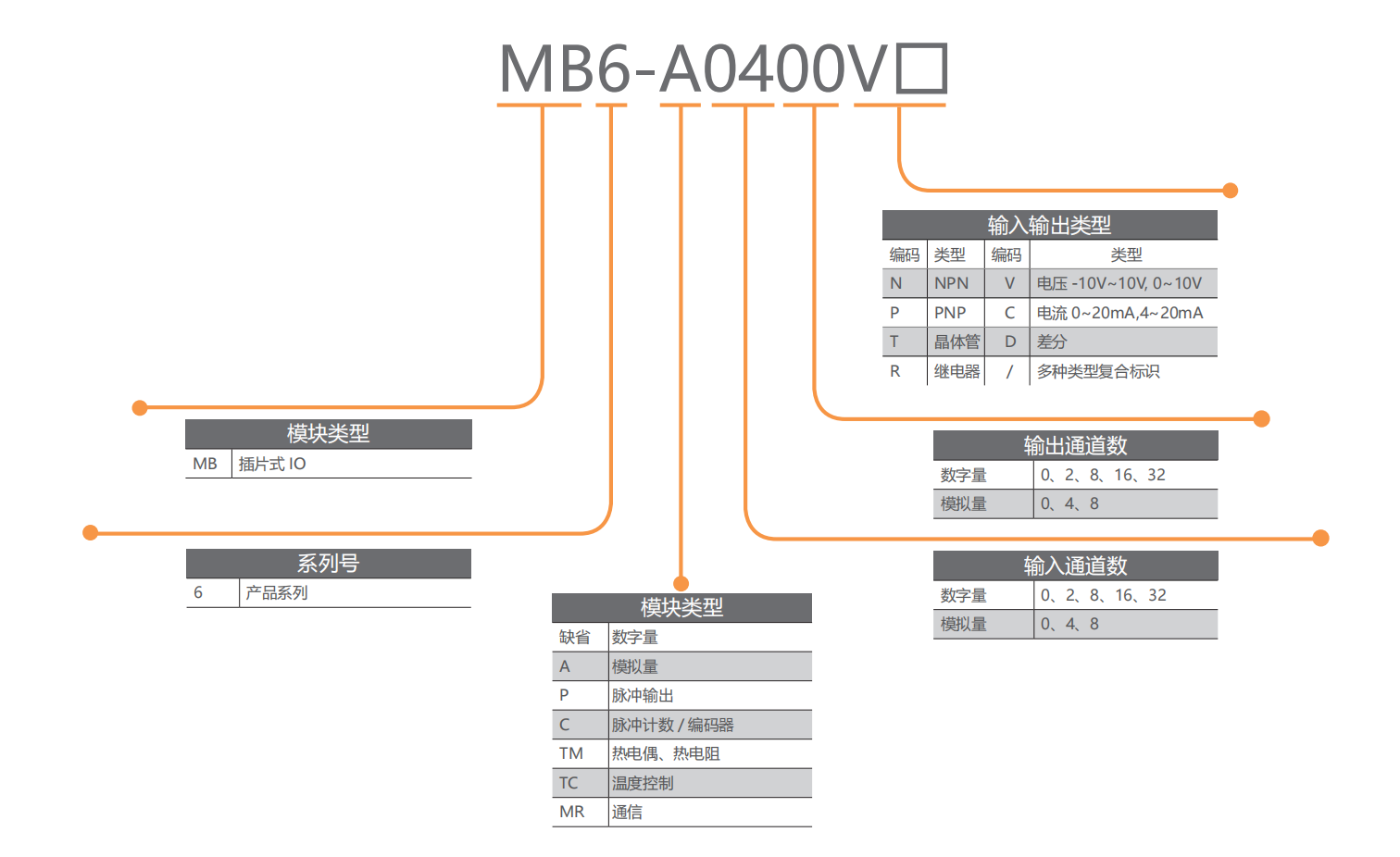

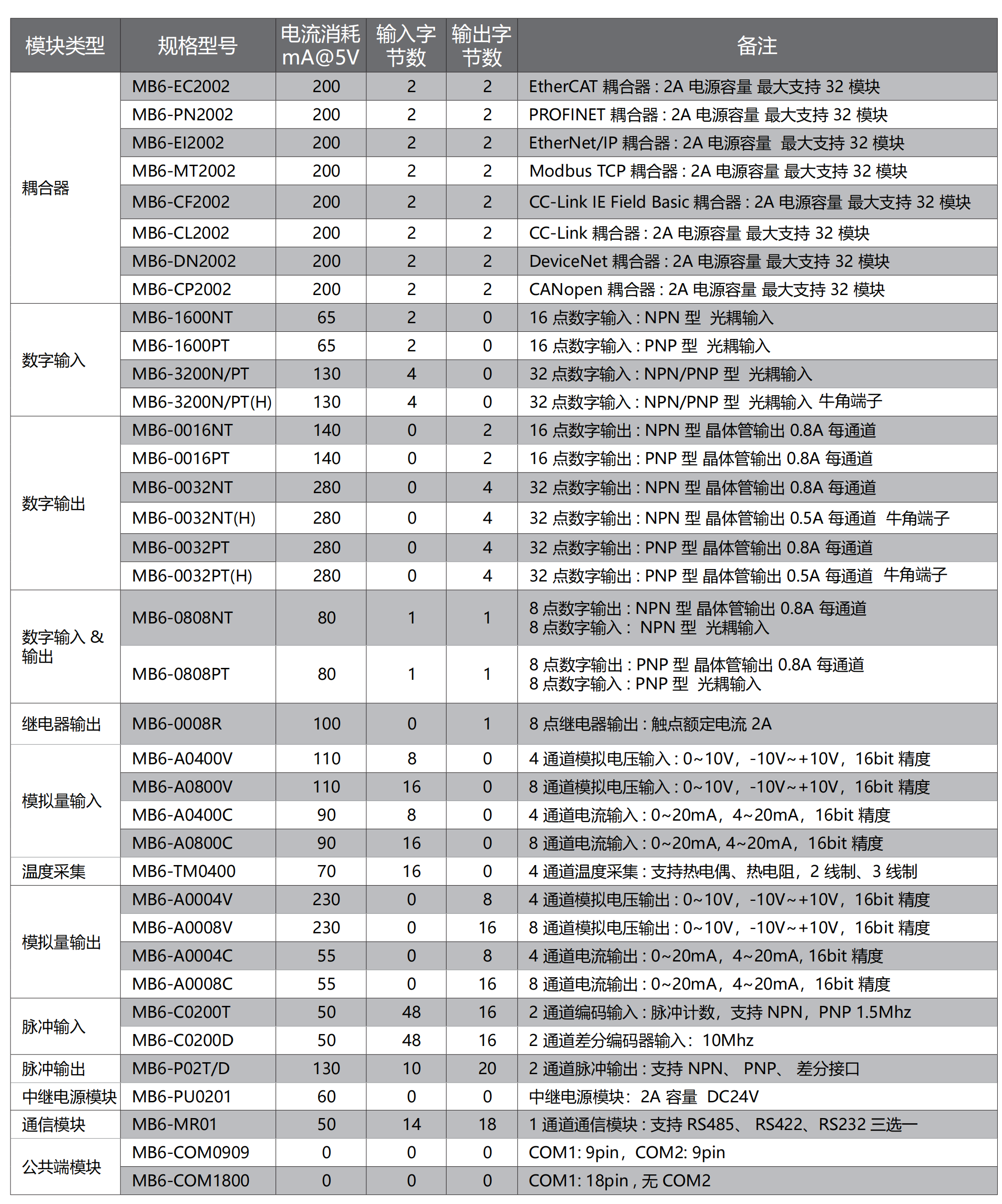

Selection list Coupler designation IO module naming rules Data download

Product size

MB6 module size and appearance
